ULTIMATE VERSATILITY

Low weight and soil
compaction • Superb
clearance

ULTIMATE VERSATILITY

Low weight and soil
compaction • Superb
clearance

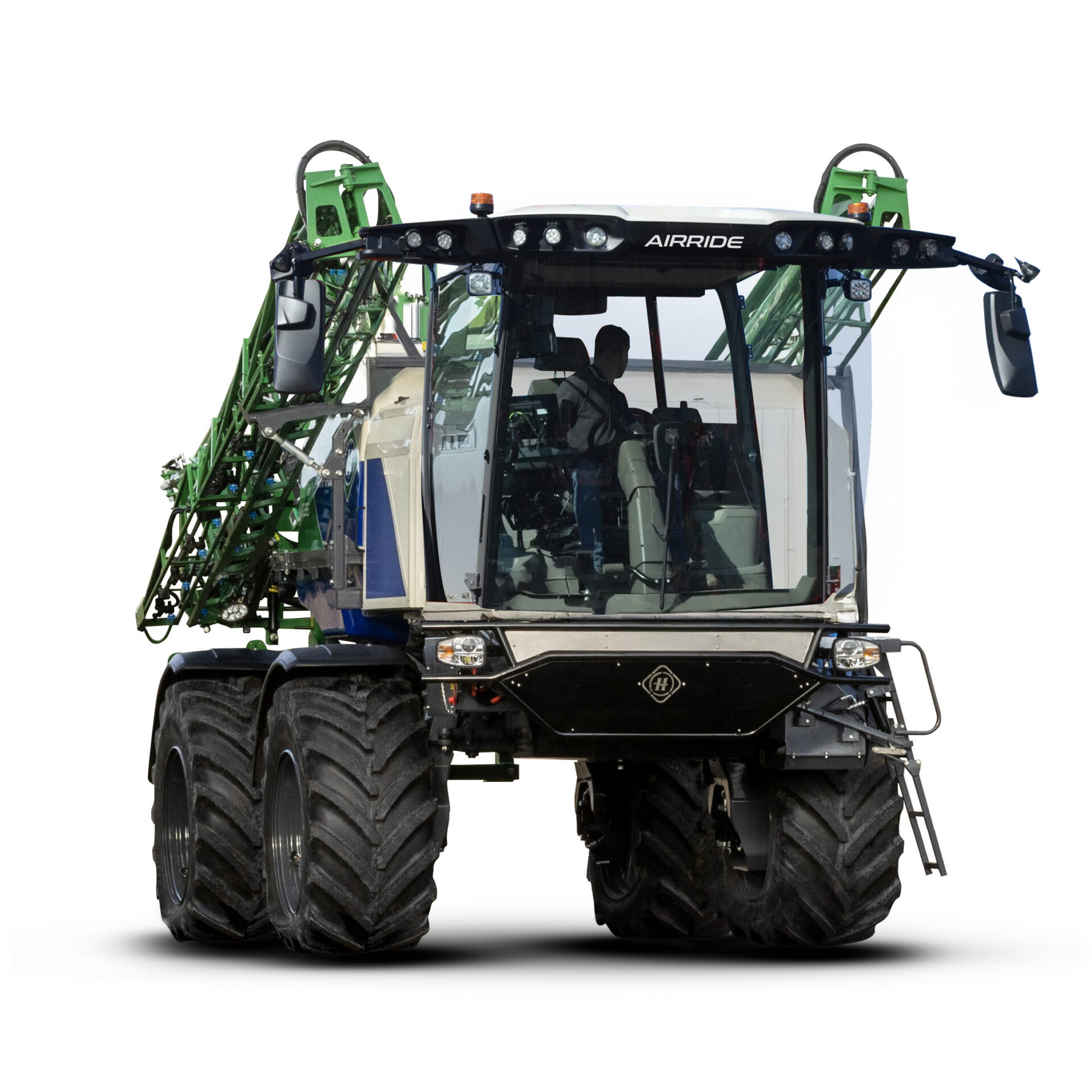

VERSATILE PERFORMER.OUTSTANDING VALUE.

Designed to optimise crop care and deliver outstanding return on investment – no wonder our Air Ride sprayers are in such consistent demand from farmers and contractors. Light weight and equipped with an array of advanced features as standard, the adaptability of the design means that you can specify precisely the machine that you need to meet the demands of your crops and your terrain.

Overview

  • Househam TMC controller
  • Individual Nozzle Control (INC) switch via GPS system
  • NavGuide Auto-Section control via GPS
  • Boom levelling
  • Full boom recirculation
  • Spacious Claas Jaguar X10 cab with Climate control and excellent visibility

View the
AIR-RIDE XTRA edition

  • 6780kg dry weight
  • Boom choice from 24 metres up 36 metre triple fold
  • Powerful, reliable Stage 5 MTU 4R1000 170-228hp engine (MTU 6R1000 240hp/ 280hp also available)
  • Axle clearance from 1.1m up to 1.7m
  • Manually adjustable axles from 72” (Hydraulically adjustable axle option)
  • Self-levelling Active Air Suspension



<p>Tank Capacity</p>

Tank Capacity

<p>Boom options up to 36m</p>

Boom options up to 36m

<p>High ground clearance up to 1.7m</p>

High ground clearance up to 1.7m

<p>Outstanding manoeuvrability – 7m turning circle</p>

Outstanding manoeuvrability – 7m turning circle

<p>Advanced technology</p>

Advanced technology

  • Features

  • PERFORMANCE

    The Air Ride is built on Househam’s proven low-weight chassis that features supple load-sensing air suspension for a smooth ride on the roughest of terrain.

    Power comes from a reliable Stage 5 MTU 4R1000 170-228hp engine (MTU 6R1000 240/280hp also available) that is ideally located for optimal weight distribution and minimised soil compaction.

    Sauer Danfoss hydrostatic all-wheel-drive system ensures outstanding traction and precise speed control.

    Air Ride sprayers offer a choice of GRP & stainless steel tank sizes – ranging from 4000 to 6000 litres

    Exceptional manoeuvrability with under 7m turning circle.

    Impressive 1.1 – 1.7m ground clearance significantly reduces the chance of crop damage, and the track width can be manually adjusted to accommodate different tramline spacings.

    PERFORMANCE

    CONTROL

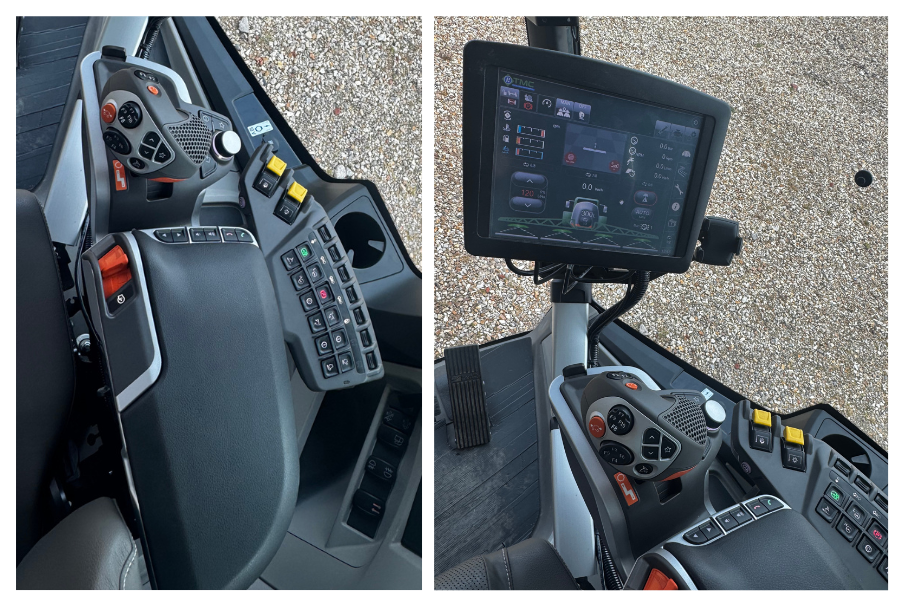

    The Househam-designed TMC (Total Machine Control) integrates many functions into one simple to use touchscreen console. TMC provides you with complete application rate control, engine management and diagnostics, hydrostatic drive control and monitoring, built-in warnings and fault detection, and automatic service reminders.

    The TMC is the main interface for setting up the spraying system and features Househam’s Spray Pilot auto steering and optional NavGuide GPS mapping system. Together with the TMC, these offer precise control of application rate for improved accuracy and reduced overspray, particularly in irregularly shaped fields.

    CONTROL

    SPRAYING

    12/24m hydraulic folding boom as standard with further boom options available from 24m up to 36m triple fold.

    The boom system combines versatility, technology and stability – featuring recirculating booms for instant spray at the required pressure with 19mm stainless steel spray lines as standard.

    For increased productivity and efficiency, the sprayer is fitted with a 30-litre stainless steel induction hopper with twin can-rising nozzles.

    Individual Nozzle Control (INC) offer improved accuracy and reduced overspray, activated via by a switch via GPS system.

    There are also a wide range of options available that enable you to tailor your Air Ride to your budget and your farm including an Altek high capacity spray pump, multiple spray sections, automatic boom levelling to Auto Nozzle Select (ANS).

    SPRAYING

    TECHNOLOGY

    Every Househam Air Ride comes packed with technology that helps you maximise productivity. Optimise your performance with our TMC (Total Machine Control) with option of NavGuide GPS mapping system.

    Select (ANS) for constant and accurate application. Choose Boom Height Control for efficient following of contours using ultrasonic sensors. And use Spray Pilot – a hydraulically controlled system – for hands free steering for ultimate accuracy and efficiency.

    Benefit from Househam’s Intelligent Transmission System (HITS) that regulates speed both on and off-road for maximum efficiency, the Harrier is packed with productivity-boosting technology.

    Other key technology systems include a boom system that combines versatility, technology and stability – featuring recirculating booms and quick-acting air valves at the nozzle as standard.

    TECHNOLOGY

    COMFORT

    Ride quality and comfort are second-to-none in the Air Ride. Our renowned self-levelling suspension system smooths out even the bumpiest terrain, increasing stability whilst reducing machine and operator fatigue.

    The Air-Ride is now fitted with a state-of-the-art Class Jaguar X10 cab that brings in new levels of refinement and operator comfort and panoramic vision.The Class Jaguar X10 cab offers more space, a higher-spec interior and better visibility. Views to the boom have been improved in particular, with large, sweeping corner windows and a redesigned engine canopy with chamfered corners.

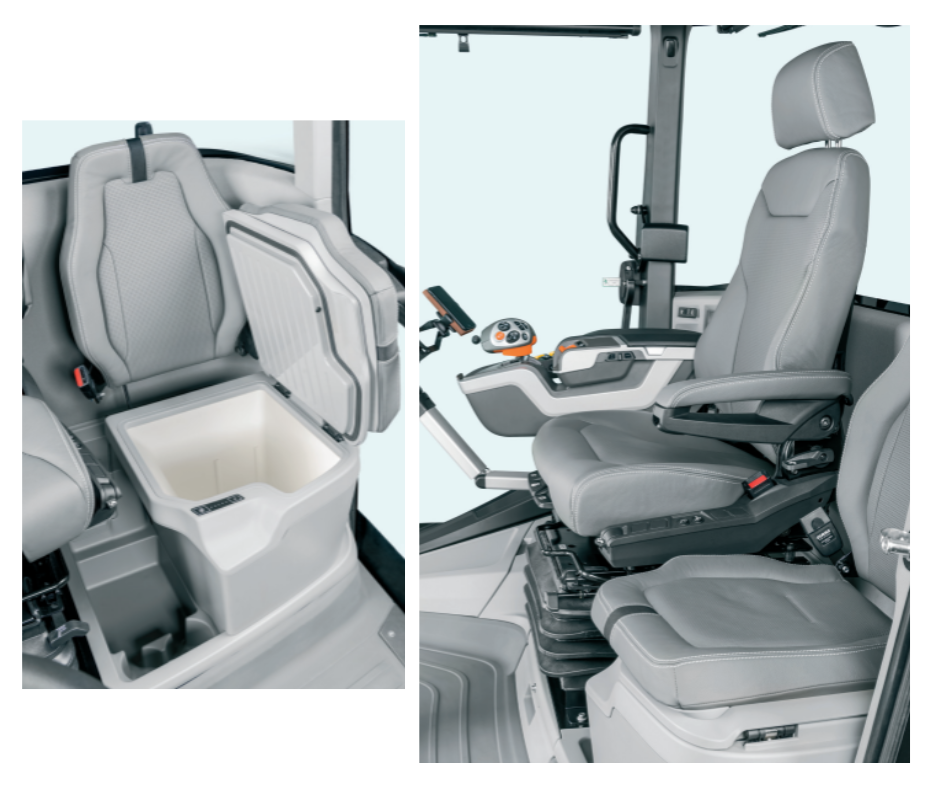

    Standard features of the X10 include automatic air conditioning, a Bluetooth radio, three-way tilting steering column and adjustable sun blinds on all windows. There’s also a larger buddy seat with a 27-litre fridge housed underneath.



    COMFORT
  • Specifications

  • Powertrain
  • Engine Type & HP
  • Fuel Tank (ltr)
  • Drive System
  • Hydraulics
  • MTU 4R1000 170-228hp
  • 300
  • Hydrostatic
  • -
  • Chassis
  • Demountable Chassis for Spreader
  • Hydraulic Adjustable axle
  • Danfoss wheel motor
  • Bonfiglioli Reduction hub
  • Poclain Wheel motor
  • X
  • 1.8 - 2.2
  • X
  • X
  • X
  • Spray System
  • Spray tank capacity (ltr)
  • Clean water tank (ltr)
  • Boom Width (m)
  • Spray pump
  • Induction hopper (ltr)
  • 3000 up to 6000
  • *Dependant on spray tk
  • 24,28,30,32,36m
  • 4 or 6 Cylinder diaphragm
  • 25
  • Ground Clearance
  • Ground Clearance
  • up to 170cm
  • Speed
  • Road Speed
  • Field Speed
  • 40km/hr (HITS available 50)
  • 20km/hr
  • Cabin
  • Cabin Type
  • Standard ABT
  • X
  • X
  • Househam Technology
  • TMC Controller
  • Individual nozzle control
  • Auto Nozzle select
  • Fieldmaster GPS
  • Gatekeeper Compatibility
  • AutoFill via TMC
  • Hydraulic Autosteer
  • RTK Compatibility
  • Househam intelligent transmission system (HITS)
  • Hill Assist feature
  • Cruise Control
  • High output centrifugal pump
  • Load Sensing hydraulics
  • Variable geometry boom levelling
  • Fully Active hydraulic
  • 4WS Spray dependancy mode
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • NORAC or Househam VG
  • N/A
  • Standard
  • SPIRIT Tech
  • ARAG Bravo 400s
  • Autosteer via ARAG display
  • N/A
  • N/A
  • Boom System
  • Boom Control system
  • Boom Tilt
  • Boom folding
  • Minimum spray height
  • Maximum spray height
  • Boom Suspension (Std)
  • Nozzles
  • Machine Suspension
  • Hydraulic Adjustable axle
  • NORAC or Househam VG
  • X
  • Twin or Triple
  • 40cm
  • 256cm
  • Tilt & Yaw
  • As defined by customer
  • Individual levelling valve suspension
  • 1.8 - 2.2
  • Dimensions
  • Height (m)
  • Height (m)
  • Width (m)
  • Working Weight (kg)
  • 3.2
  • 3.2
  • 2.9
  • 7250 (Depending on Model)
