BUILT TO PERFORM, DESIGNED BY YOU.

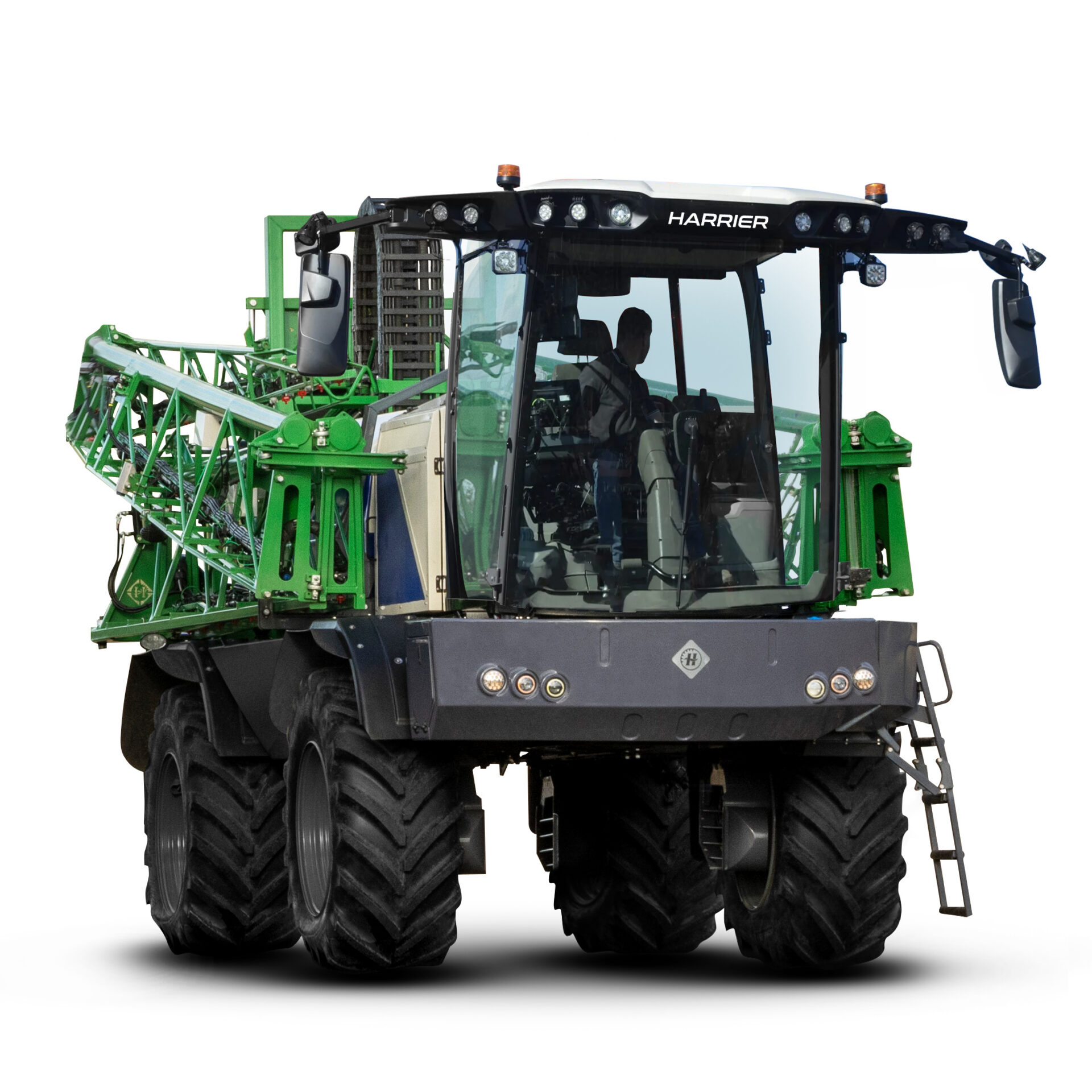

Since its launch in 2018, Househam’s high-capacity Harrier self-propelled sprayer has been a firm favourite among operators facing demanding workloads. The Harrier has been developed specifically to meet the needs of professional operators. Househam’s engineers worked closely with customers to deliver a high-output sprayer that places performance, efficiency and comfort at the heart of its design.

Overview

  • Front & Rear oscillating axles for maximum traction
  • Househam TMC controller
  • Individual Nozzle Control (INC)/ Auto Nozzle Select (ANS) switch via GPS system
  • NavGuide Auto-Section control via GPS
  • Ultra-Sonic Boom Height Control
  • Full boom recirculation
  • Spacious, quiet and fully climate controlled
  • Premium CLAAS Jaguar X10 cab with panoramic visibility
  • Spray tank capacitys of 4000, 5000 or 6000 litres
  • Only 8500kg unladen
  • Boom choice from 13-24m flat fold or 28m to 36m triple fold
  • Monocoque low weight chassis design for optimised weight distribution
  • MTU 6R1000 240HP stage 5 engine (MTU 6R1000 up to 380hp engine also available)
  • Axle clearance 1.1m
  • Manually adjustable axles from 72” up to 84”(Hydraulically adjustable axle option)
  • Active Air Suspension
<p>4000, 5000 or 6000 litre capacities</p>

4000, 5000 or 6000 litre capacities

<p>Triple fold boom system</p>

Triple fold boom system

<p>Up to 1.10m underbody clearance</p>

Up to 1.10m underbody clearance

<p>Advanced Technology</p>

Advanced Technology

<p>Outstanding manoeuvrability</p>

Outstanding manoeuvrability

  • Features

  • Performance

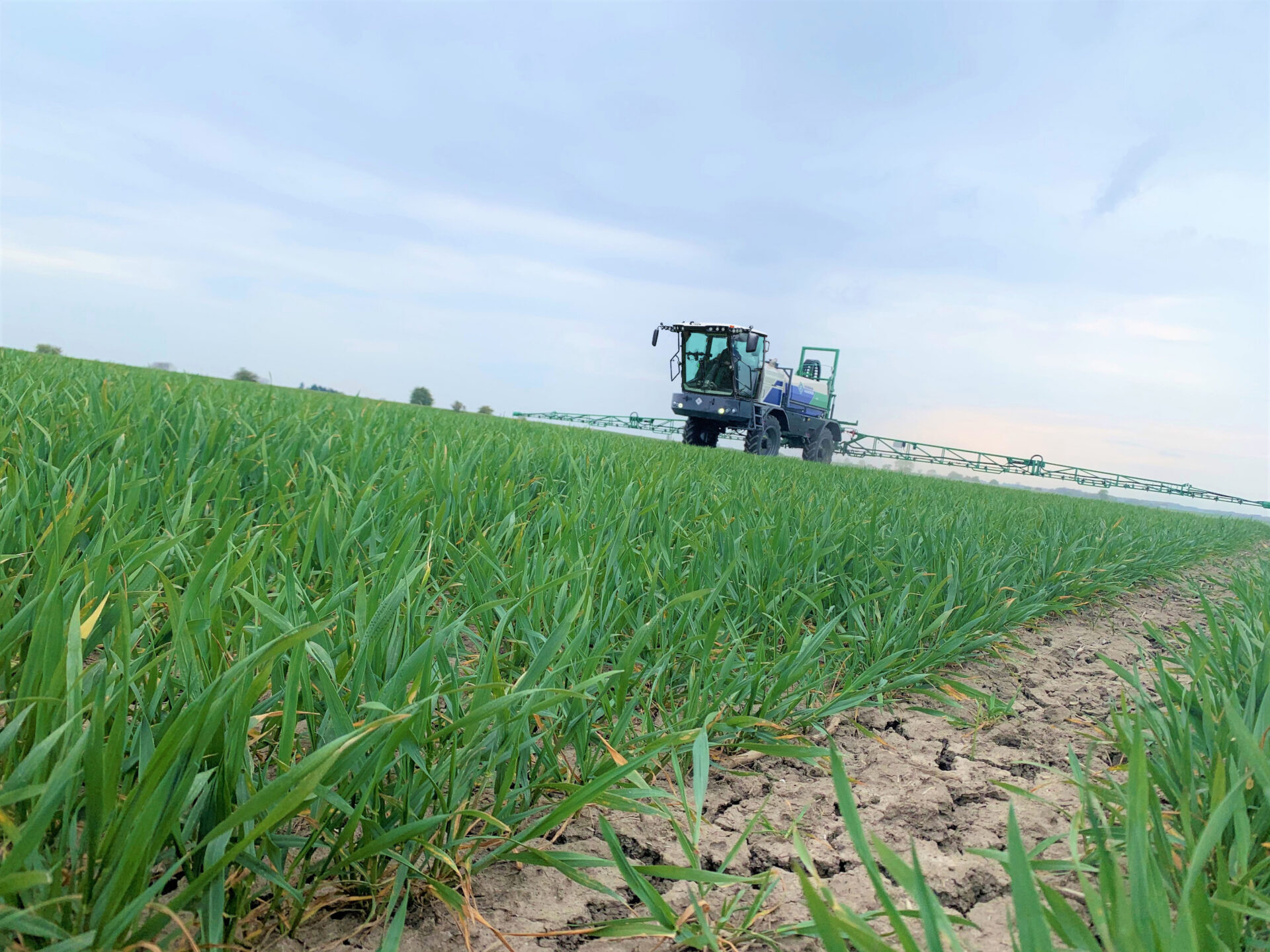

    The Harrier is built on single-piece, low-weight chassis that gives the sprayer a low centre of gravity and even weight distribution, ensuring it remains stable on the most challenging terrain

    Careful engineering has kept unladen weight of the whole machine to just 8500kg and A-frame axles offer generous 1.1m ground clearance for minimising crop damage.

    Power comes from either a 240hp Stage V MTU engine, which drives a robust hydrostatic pump connected to individual motors on each wheel.

    For increased productivity and efficiency, the sprayer is fitted as standard with a four-cylinder Altek pump, and there’s the option of 4,000-, 5,000- or 6000-litre tanks in either GRP or stainless steel. A 30-litre stainless steel induction hopper ensures fast and efficient filling and the fully-enclosed spray pack means there’s minimal exposed pipework.

    Performance

    Control

    The Househam ‘in house’ designed TMC (Total Machine Control) integrates many functions into one simple to use touchscreen console. TMC provides you with complete application rate control, engine management and diagnostics, hydrostatic drive control and monitoring, built-in warnings and fault detection, and automatic service reminders.

    The TMC is the main interface for setting up the spraying system and features Househam’s Spray Pilot auto steering and NavGuide GPS mapping system. Together, these offer precise control of application rate for improved accuracy and reduced overspray, particularly in irregularly shaped fields

    Control

    Spraying

    Wide choice of booms with a dual-fold 13/24m option and tri-fold up to 36m.

    Our hydraulic incline feature enables you to incline one boom while still using the other, making it easy to spray around obstacles and adjust the boom to the terrain’s contours.

    Optional NORAC height control also ensures the boom is kept in the optimum position for effective application.

    Individual Nozzle Control (INC) and Auto Nozzle Select (ANS) also offer improved accuracy and reduced overspray, particularly in irregularly shaped fields with individual nozzles activated electronically either automatically or manually from the cab.

    Spraying

    Technology

    From a boom system that combines versatility, technology and stability – featuring recirculating booms and quick-acting air valves at the nozzle as standard – to Househam’s Intelligent Transmission System (HITS) that regulates speed both on and off-road for maximum efficiency, the Harrier is packed with productivity-boosting technology.

    Select (ANS) for constant and accurate application. Choose Boom Height Control for efficient following of contours using ultrasonic sensors. And use Spray Pilot – a hydraulically controlled system – for hands free steering for ultimate accuracy and efficiency.

    TMC is Househam’s intuitive, easy-to-use, touchscreen console that provides fingertip control of all the machine’s functions. The TMC is the main interface for setting up the spraying system, featuring Househam’s Spray Pilot auto steering and NavGuide GPS mapping system which offers precise control of application rate.

    Technology

    Comfort

    Long hours in the field become less demanding thanks to the comfortable, spacious and high spec Claas Jaguar X10 Cabin. The panoramic cab features full climate control, premium leather air-suspended seat, cool box, DAB radio and CD with Bluetooth, plus electrically adjustable mirrors.

    A class leading ride on road or in field is achieved with the use of our air ride load sensing suspension system. Even weight distribution and a low centre of gravity ensures stability whatever the terrain.

    Comfort
  • Specifications

  • Powertrain
  • Engine Type & HP
  • Fuel Tank (ltr)
  • Drive System
  • Hydraulics
  • MTU 6R1000 240hp
  • 300
  • Hydrostatic
  • -
  • Chassis
  • Demountable Chassis for Spreader
  • Hydraulic Adjustable axle
  • Danfoss wheel motor
  • Bonfiglioli Reduction hub
  • Poclain Wheel motor
  • N/A
  • 1.8 - 2.2
  • X
  • X
  • N/A
  • Spray System
  • Spray tank capacity (ltr)
  • Clean water tank (ltr)
  • Boom Width (m)
  • Spray pump
  • Induction hopper (ltr)
  • 4000 GRP (4000,5000/6000 in stainless steel)
  • *Dependant on spray tk
  • 24,28,30,32,36m
  • 4 or 6 Cylinder diaphragm
  • 30
  • Ground Clearance
  • Ground Clearance
  • 110cm
  • Speed
  • Road Speed
  • Field Speed
  • 40km/hr (HITS available 50)
  • 20km/hr
  • Cabin
  • Cabin Type
  • Standard ABT
  • Claas Jaguar X10 Cabin
  • N/A
  • Househam Technology
  • TMC Controller
  • Individual nozzle control
  • Auto Nozzle select
  • Fieldmaster GPS
  • Gatekeeper Compatibility
  • AutoFill via TMC
  • Hydraulic Autosteer
  • RTK Compatibility
  • Househam intelligent transmission system (HITS)
  • Hill Assist feature
  • Cruise Control
  • High output centrifugal pump
  • Load Sensing hydraulics
  • Variable geometry boom levelling
  • Fully Active hydraulic
  • 4WS Spray dependancy mode
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • X
  • N/A
  • NORAC or Househam VG
  • N/A
  • Standard
  • SPIRIT Tech
  • ARAG Bravo 400s
  • Autosteer via ARAG display
  • N/A
  • N/A
  • Boom System
  • Boom Control system
  • Boom Tilt
  • Boom folding
  • Minimum spray height
  • Maximum spray height
  • Boom Suspension (Std)
  • Nozzles
  • Machine Suspension
  • Hydraulic Adjustable axle
  • NORAC or Househam VG
  • X
  • Twin or Triple
  • 40cm
  • 240cm
  • Tilt & Yaw
  • As defined by customer
  • Individual levelling valve
  • 1.8 - 2.2
  • Dimensions
  • Height (m)
  • Height (m)
  • Width (m)
  • Working Weight (kg)
  • 3.5
  • 3.5
  • 2.9
  • 8500 (Depending on Model)
